singlelist

The singlelist variable is part of the array of objects you use to define data and non-data values for this visualization.

Note: You must be an administrator to manage custom visual types.

Type

singlelist

Editor

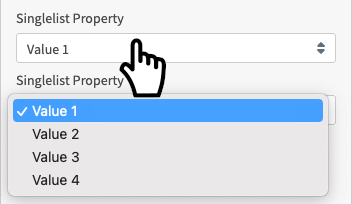

singlelist variables are represented in the settings sidebar as a simple drop down.

Variable Specific Properties

Property	Argument	Description
`defaultValue`	string
`values`	array of strings	The options you make available for users to select from.

Generic Properties

Generic properties apply to many variables.

Property	Argument	Description
`name`	string	The name of the property. It must be unique among all variables on the visualization. This name is used to access the data accessor and/or variable value on the controller provided to the visualization.
`descr`	string	A description of the variable for your reference. This is not displayed in the UI.
`attributeType`	array of strings	A list of field types to include when selecting fields for this variable. Accepted values: `ATTRIBUTE` `TIME` `NUMBER` `INTEGER`
`required`	boolean	Triggers the UI to require a value for certain variable types. Not used for this variable type.

Deprecated Properties

Property
None.

Samples

{
	"name": "Tile Provider",
	"type": "singlelist",
	"descr": "Map tile provider",
	"values": [
		"OpenStreetMap (no API key required)",
		"MapQuest",
		"MapBox",
		"N/A"
	],
	"defaultValue": "OpenStreetMap (no API key required)",
	"required": false
}

See Visual Type Configuration Properties.
