Update Field Capabilities

When you create your source or create fields in a source, Logi Composer defines default field capabilities for your data. You can adjust the predefined capabilities of native and derived fields on the Fields tab of your source, enabling or disabling capabilities as needed.

Note: In this release, the user interface and workflows have changed from previous releases. If you are running an earlier release, see Update the field capabilities for your source (earlier releases).

Update the field capabilities for your source

1. Access the Fields tab for your source.

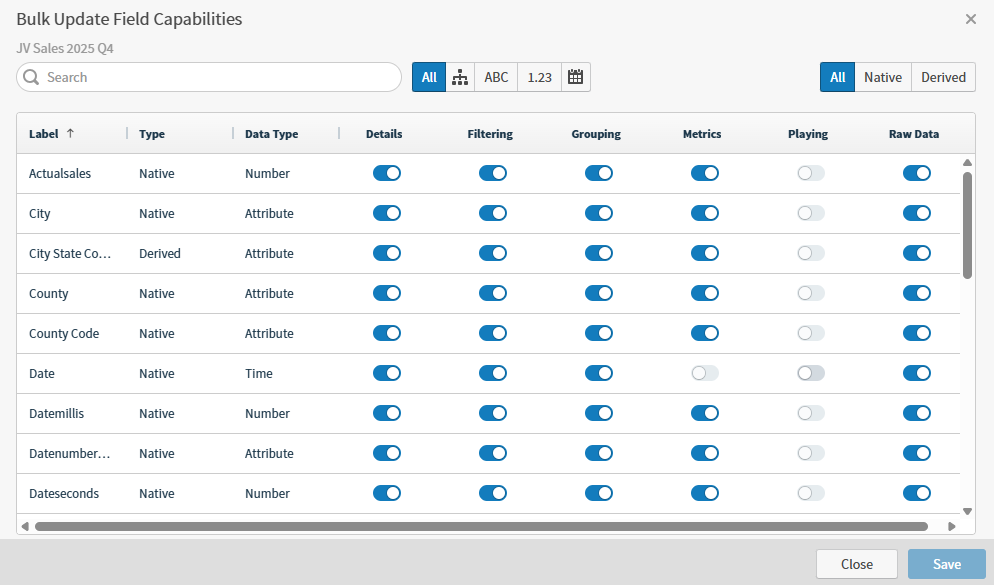

2. Select the Output, then select Update Field Capabilities from the Options menu. The Bulk Update Field Capabilities work area opens.



   Use Search to find specific fields by Label, or use the provided filtering options to narrow the list of visible fields:

   • Filter by data type: Show All data type fields: Attribute (ABC), Number (1.23) or Time ().
   • Filter by type: All, Native, or Derived.

   Note: You can only update the fields you have made visible in this source.

   Select the toggle for any of the available options to enable or disable the field capabilities for that field. See Update Field Capabilities

3. Only visible fields are shown in this work area. Search for an individual field by name, or filter the fields by data type (attribute, numeric, date) or type (native, derived).

4. Enable or disable the field capabilities for all visible fields in the source. Capabilities include: Details, Filtering, Grouping, Metrics, Playing, and Raw Data. See Field Capabilities Options.

5. Save your changes.

Update the field capabilities for your source (earlier releases)

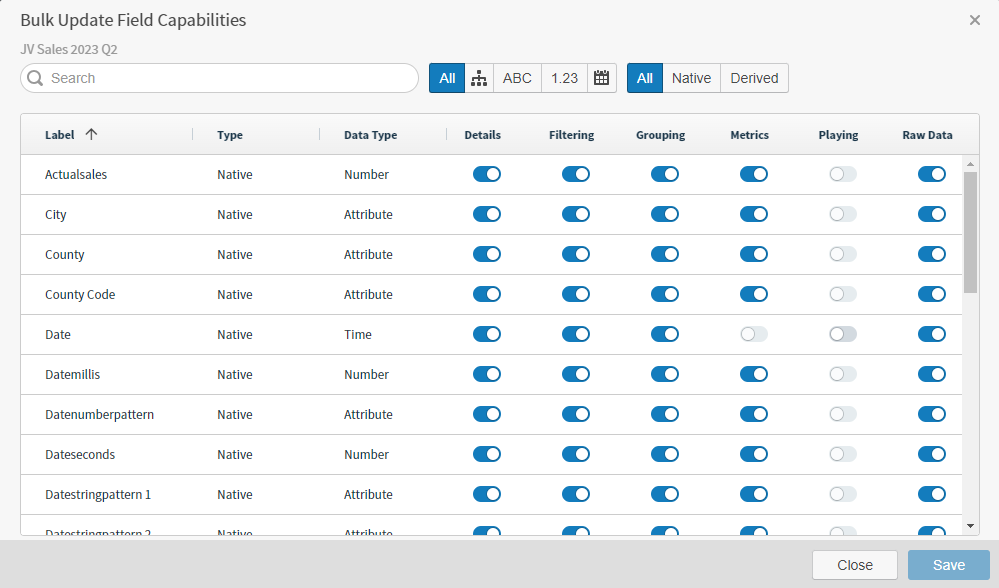

1. Access the Fields tab for your source and select Update Field Capabilities. The Bulk Update Field Capabilities work area opens.



2. Only visible fields are shown in this work area. Search for an individual field by name, or filter the fields by data type (attribute, numeric, date) or type (native, derived).

3. Enable or disable the field capabilities for all visible fields in the source. Capabilities include: Details, Filtering, Grouping, Metrics, Playing, and Raw Data. See Field Capabilities Options.

4. Save your changes.
