Modify Bar Charts
When you first create a standard bar chart or a multiple metric bar chart, the default settings specified in the data source configuration are used to create the visuals.

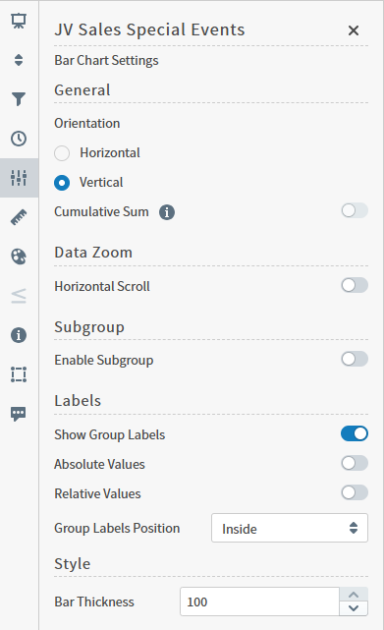

Use the Settings sidebar to further refine your selected bar chart.
| Setting | Description |
|---|---|
Orientation |
Select Horizontal or Vertical orientation for the bars. |
Cumulative Sum |
When enabled, Composer updates the visual to add the previous value to the next value, and both the original and cumulative value for selected items are displayed as a tool tip. In Bar visuals, this feature is only available when data is grouped by a Time field, and when the Enable Subgroup setting is disabled. |
Horizontal Scroll |
Select to enable users to scroll and zoom data for this visual. Other settings you define for this visual may limit the availability of this option. |
Subgroup |
Slide on (to the right) the Enable Subgroup slider to enable a subgroup style. After enabling a subgroup style, select the style for the chart: Clustered Bar Chart, Stacked Bar Chart, or 100% Stacked Bar Chart. If Subgroups are enabled, you can define the visibility and position of their labels. |
Show Group Labels |
Enable to display labels for group values. |
Absolute Values |
Enable to display the data in absolute values. |
Relative Values |
Enable to display the data in relative values. |
Group Labels Position or Subgroup Labels Position |
Select a position option for the group or subgroup labels: Outside horizontal, Outside diagonal, or Outside vertical. |
Style |
Specify the bar thickness for the chart. |
