Export Visual Data in CSV or XLSX Format

Export visual data in CSV or XLSX format

1. Select Export from the visual drop-down menu. Select an export option for your visual.

2. Select a file format on the submenu, Visual Data > CSV or Visual Data > XLSX.

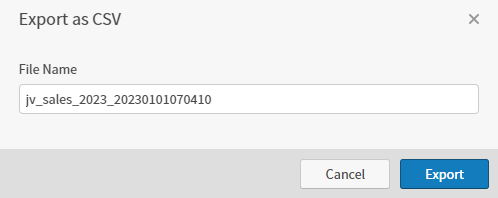

3. If you select CSV, the Export as CSV dialog opens.



   Accept or change the file name, then select Export. Logi Composer prepares a CSV file downloaded by your browser.

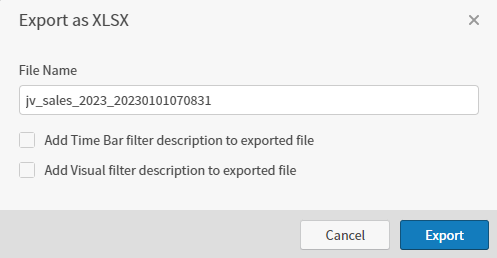

4. If you select XLSX, the Export as XLSX dialog opens.



   Accept or change the default settings:

   • Accept or change the file name.

   • Select Add Time Bar filter description to exported file to include in the export.

   • Select Add Visual filter description to exported file to include in the export.

5. Select Export. Logi Composer prepares an XLSX file downloaded by your browser.

Note: The number of records included is limited by the setting of the zoomdata.export.data.max.rows property in the zoomdata.properties file. See Configuration Property Files.
