Format Images or a URL Using the Table Context Menu

You can include images or URLs included with your data source in a table to allow users to select and navigate to the hyperlink, or view images associated with the data. Use the table context menu to define the size of images

Format a hyperlink (URL) using the table context menu

1. Select a table visual in a dashboard or in the Visual Gallery.

2. Locate the field in the table and select next to its column heading to access the table context menu.

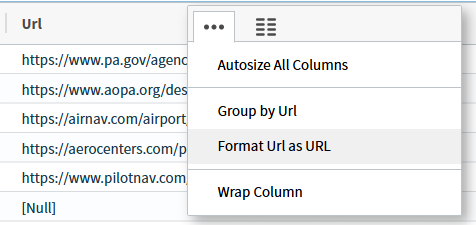

3. Select Format <field> as URL on the context menu. A Format as URL work area opens.

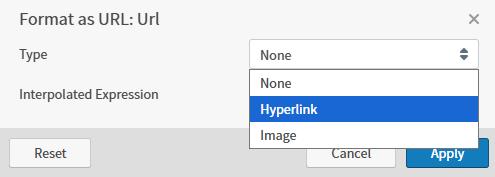

4. Select Hyperlink, then Apply. The URL is formatted in the table as a hyperlink users can select to navigate to the referenced site.

5. You can optionally apply an Interpolated Expression to the end of the hyperlink, such as a referrer or other access information.

Note: Remove the hyperlink by selecting again, then None from the Type. Select Apply to apply your changes.

Format an image using the table context menu

1. Select a table visual in a dashboard or in the Visual Gallery.

2. Locate the field in the table and select next to its column heading to access the table context menu.



3. Select Format <field> as URL on the context menu. A Format as URL work area opens.

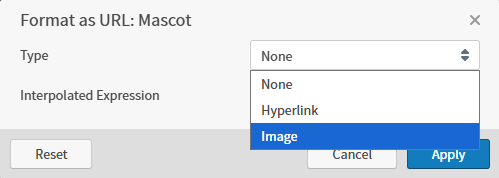

4. Select Image. The work area expands to allow you to add more information.

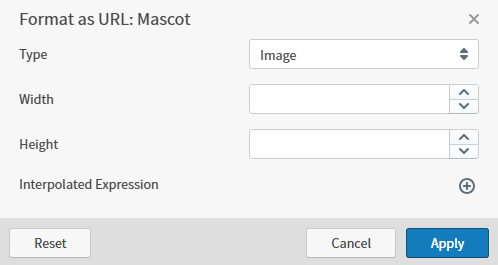

5. Add the Width and Height of your image as you want it to display in pixels. Select Apply to apply your changes.
